ProSource BH-BR21B-PS Door Hinge, Solid Brass, Brass, Loose Pin, 180 deg Range of Motion, Screw Mounting

ProSource

ProSource BH-BR21B-PS Door Hinge, Solid Brass, Brass, Loose Pin, 180 deg Range of Motion, Screw Mounting

$24.99$24.99
ProSource BH-BR21B-PS Door Hinge, Solid Brass, Brass, Loose Pin, 180 deg Range of Motion, Screw Mounting
  • Color: Brass
  • Corner Radius: 5/8 in
  • Dimensions: 3-1/2 x 3-1/2 in
  • Door Leaf Height: 3-1/2 in
  • Door Leaf Thickness: 2.2 mm
  • Model #: BH-BR21B-PS
  • UPC #: 045734646858
  • SKU: 2667061

Your shopping list will be used for pickup in-store

Product Details

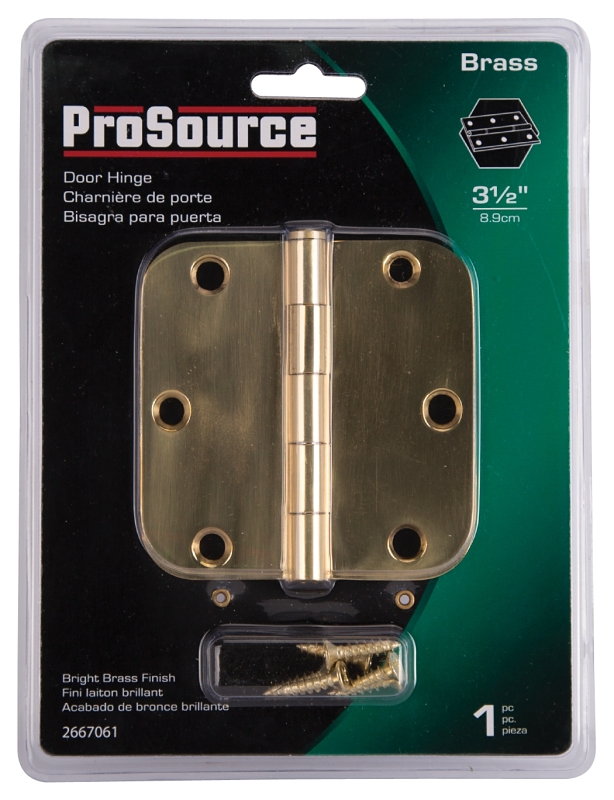

The ProSource door hinge is made of solid brass, 2.2 mm thick with 5-knuckles. The hinge offers a unique and creative hardware solution for your home. Screws included.

Key Features

  • For residential doors up to 1-3/4 ft thick
  • Five knuckles, loose pin

Item Specifications

ColorBrass
Corner Radius5/8 in
Dimensions3-1/2 x 3-1/2 in
Door Leaf Height3-1/2 in
Door Leaf Thickness2.2 mm
Door Leaf Width3-1/2 in
Door Thickness1-3/4 in
FinishBrass
IncludesScrews
MaterialSolid Brass
Mounting Hole Diameter7 mm
Mounting TypeScrew
Number of Knuckles5
Number of Mounting Holes6
Pin Diameter6 mm
Pin TypeLoose
Range of Motion180 deg
MORE DETAILS:
  • Application: For lightweight residential doors in low frequency applications
